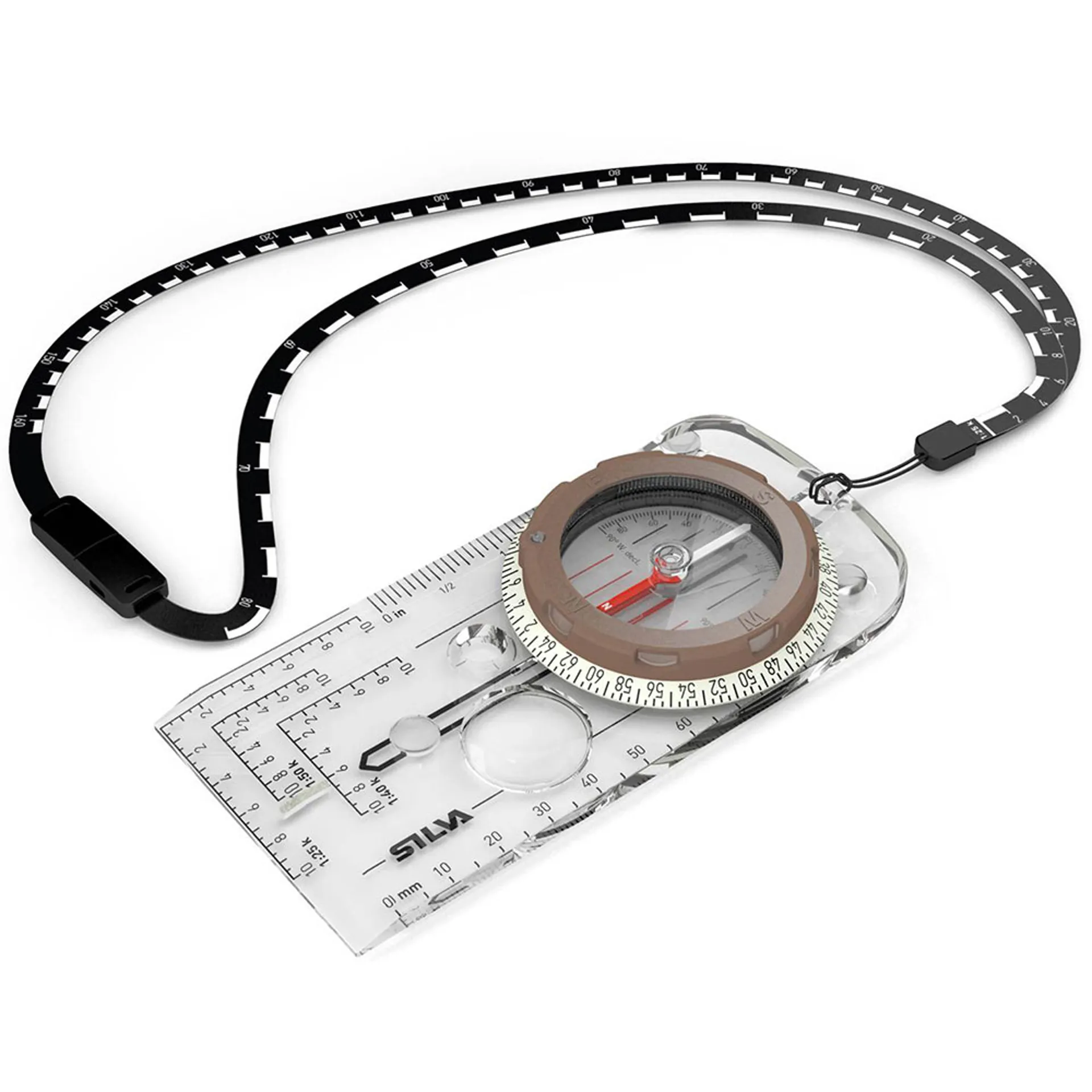

Silva full-sized base plate compass for experienced navigators – used by NATO Forces around the world. Mainly used by the infantry as a soldier’s or officer’s compass. Additional features include measuring scales for positioning (GPS), graduation in mils and degrees (6400/360), integrated adjuster for magnetic declination, magnifying lens and rubber feet for precision map work.
The compass has a luminous graduation ring and markings for compass reading in the dark. Once activated by daylight/flashlight it will give light up to 4 hours of light. The included scale lanyard and slope card makes it easier to quickly make a distance judgement of your route or to plan your route in advance.
Features
Type of compass: SILVA 1-2-3 System, baseplate compass
Liquid filled capsule
Sapphire jewel bearing
High quality steel needle
Hardened steel pivot
Magnifying lens
Declination adjustment
Clinometer
Luminous markings
Luminous graduation ring
Illumination / active time after activation in light: 4 hours
Silicon friction feet
Tactile grip ring
GPS scales
Included: Scale lanyard (1:25, 1:50), slope card
Graduation: 6400/360 (360 at bottom of capsule)
Resolution mils / degrees: 50 / 2
Measuring scales: Base plate: mm, inch
UTM position plotting scales (Romer scales): 1:25k, 1:40k, 1:50k
Water resistance: Waterproof
Altitude use: 5000m@-15 C
Temperature operating range: -30 to +60 C
Material: Acrylic/PC/ABS/TPU
Size: 126x60x13mm
Weight: 50g
Model: 37585
